DUST COLLECTORS

The CGS Dust Collectors

Applications:

Food Processing
Laser and Plasma Cutting Machinery
Mining
Paper Scrap Handling
Blasting Machines
Chemical Production Industry
Fiberglass production
Pharmaceutical Industry
Welding Stations
Woodworking
Rubber Grinding
Seed Processing
Thermal/Flame Spray

Features:

Modular design provides optimum field flexibility and short manufacturing lead time.
Heavy duty industrial mild steel construction for long life - Module constructed of 7 gauge carbon steel.
Baked on, durable powder coat paint - All carbon steel components are 5-stage acid washed prior to powder coating for maximum paint adhesion. Painted inside and outside for unsurpassed weather and corrosion resistance.
Vertical design of the filter cartridges provides more efficient pulsing of dust, thus eliminating uneven dust loading associated with horizontally mounted cartridges.
High entry cross flow inlet eliminates velocities associated with traditional hopper inlets. The channel baffles installed in the inlet protect the filters from incoming dust and separate the larger particles directly into the hopper, reducing the load on the filters.
Special efficient cartridge technology to deliver clean air and long life while utilizing the smallest floor space of any dust collector available today.
Multiple filter media options are available to best suit every application and dust types.

The GSSH High Pressure Dust Collectors

Applications:

central vacuum systems
positive high pressure bin vents
negative high pressure bin vents

Standard Features and Benefits:

Heavy duty gauge 7 construction.
8 PSIG Vessel strength.
Tangential inlet minimizes dust contacting the filters.
2-cartridge and 4-cartridge design available
Can be used as a stand-alone dust collector or without support structure for bin vent applications.
Pulse-jet cleaning system includes control panel.
Filter cartridges with double seal gaskets and separator bead that ensures uniform pleat spacing of media

CGSP Booths

Features:

The design is versatile and it is not limited to the 10 standard model definitions.
Access Doors on the back of the booth
Slot panels with back draft flap
Integrated high volume fan with silencer and diffuser
Louvered door
Common hopper with pneumatic take off
Slot panels with back-draft flaps
HEPA module using GS clamp - to hold filter in place
Common clean air plenum allows even air distribution throughout the filter modules
Pneumatic dust removal hoppers

CGSM 4-Filter Mini Dust Collector

Features:

3 HP, 1,000 CFM at 9" w.c. or 2,000 CFM at 5" w.c.
Automatic, reverse pulse jet cleaning systems for long cartridge life.
Flame retardant filter cartridges.
Built-in spark trap inlet to protect cartridges
Easy to remove aluminum dust drawers
Built-in safety monitoring filter

High Efficiency Cyclone Particulate Separators

These high efficiency cyclones are frequently used as product receivers,
as pre-cleaners to high efficiency fabric-type dust
collectors, or as independent collectors for coarse dusts.

Advantages:

Stable pressure drop for a given gas flow
Constant efficiency for a given particulate condition
No moving parts; no replaceable filters
Ability to handle extremely high dust concentration
High temperature capability

Options:

discharge hopper
scroll outlet and steel support legs.
Common hoppers and scroll outlets are available for multiple cyclone configurations.

Efficiency:

Coarse particle size distribution
Higher product specific gravity
Lower gas density
A decrease in cyclone diameter (two smaller cyclones in parallel will have a higher efficiency than one larger cyclone with an equal pressure drop)
Smaller outlet diameter. An increase in pressure drop also results.

Mini Solution for Small Dust Applications

The new CGS-Mini is a single-cartridge dust collector for sub 500 cfm applications
where a dedicated dust collector for one process machine is required.

The GS-Mini incorporates the same cam-lock features and structural strength
of the standard CGS Dust Collector.

Filter cartridge, fan and manual pulse system are included.

Typical Applications:

Ambient filtration
Welding fumes
Mixing and blending dust
Mineral, silica dust
Plastic and composite dust Sanding/grinding dust
Food additive/spices
Talc, cornstarch dust
Abrasive blasting
Carbon black/toner dust

Features:

10 GA Heavy Duty Construction
Integrated Magnahelic gage to monitor the pressure drop across the filter
Right or Left Inlet Location
Spark-resistant Aluminum Fan
Manual Pulse Controller

Options:

Automatic Timer
Quick-release Dust Drawer
Heavy Duty Casters with locking mechanism
Prewired Motor Starter

Pulse-Jet Portable Dust and Fume Collector

Fume-Arm is ideal for industrial process contamination, source capture, and for plants requiring periodic dust collection at various locations. It is a portable air cleaner for capturing welding fumes, grinding dusts, dry dusts, and soldering fumes, and other airborne particles.

Capacities:

The Pulse-Jet Fume Arm has 500 cfm capacity at the capture hood, 1,250 cfm free air.
Equipped with large wheels and brakes for ease in moving and positioning.
Powder coated surface finish inside and out.
Venturi assisted pulse cleaning.
110/1/60 VAC motor (other voltages available)
Thermal overload in motor starter.

Smoke and Dust Collector for CNC Laser and Plasma Machines

The CGSP dust collection unit is completely assembled and ready to run.
The fan, cleaning system, filters and controls are factory assembled.

Features:

7.5 HP fan rated for 2,500 CFM at 10" w.c.
Four(4) fire-retardant cartridges with 320 sq. ft. of media each
Reverse pulse, automatic cleaning system for long cartridge life, prewired to control panel.
Modular construction allows component orientations flexibilty
Spark trap inlet to protect filter cartridges
Easy to remove dust drawers
onvenient access door to filter cartridges
Simplified cartridge removal
prinkler Kit

Specifications:

NEMA 4 rating on electrical enclosures
Cleaning system requires 10 CFM compressed air at 90 PSI
Rugged 10 & 7 ga. construction
Housing rated for ±25" WG
Weight of collector approximately 3,000 lbs
Media area = 1,300 sq. ft.
Efficiency = 99.99%, 0.5 micron
Silencer designed for 75 dBA maximum

The GSC Dust Collectors

Pharmaceutical Processes:

Tablet Presses
Tablet coating
Fluid bed drying
Spray drying
Blending
Granulation
General room ventilation

Canadian Air Systems specializes in variety of dust collectors, including packaged and mobile dustcollection systems.

CG Dust Collectors

Packaged modular design for flexibility
Heavy duty industrial construction
High efficiency filters
Module configurations are practically unlimited

CGSP Packaged Dust Collection Systems

Smoke and dust collector for CNC machinery
Fully assembled plug-in units
Air flows to 2,000 CFM @ 12" WG

CGC Dust Collectors

Hazardous dust applications
Bag In - Bag Out filter replacement systems
Pharmaceutical installations

High Pressure Dust Collectors

Up to 8 PSI positive pressure strength
multiple-cartridge models
Can be used as a central vacuum system, or for high pressure bin ventilation

CGSM Mini Dust Collectors

Self-contained systems for up to 2,000 CFM.
Fully assembled and prewired units with fan, motor starter, control, filters and filter cleaning system.

CGSB Work Booths

Enclosed work area
Special roof design available
Cross draft ventilation keeps dust out of breathing zone

CGS-Mini Portable
Dust Collectors

Single cartridge small dust collector
Sub 500 CFM applications where a dedicated dust collector for each process machine is desired

Fume Arm Portables

Engineering of dust collector fans and blowers, industrial dust collecting systems, high pressure duct collection blowers and ventilators, industrial baghouse dust collectors, dust conveying system, dust blowing air conveyors, fume & gas air scubbers, high pressure blower wet scrubber systems, air handling fume extractors, industrial fume collectors and gas scrubbers, chmical resistant FRP dust collectors, chemical fumes scrubbers, industrial emmission control fan / blower systems, NOx air handling blower / fan systems and air extractors.

Two-stage and three-stage filtration
Designed for welding fumes, grinding dusts
1000 CFM at capture hood
Heavy duty fume arms

Cyclone Separators

High efficiency centrifugal particulate separators
Simple reliable design; can be used as pre-filters to larger fabric collector systems
Self-dumping hoppers

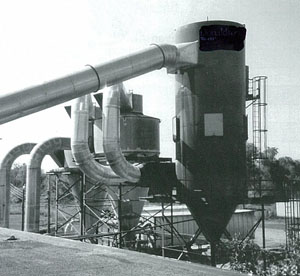

Industrial baghouse dust collectors and dust collection systems
